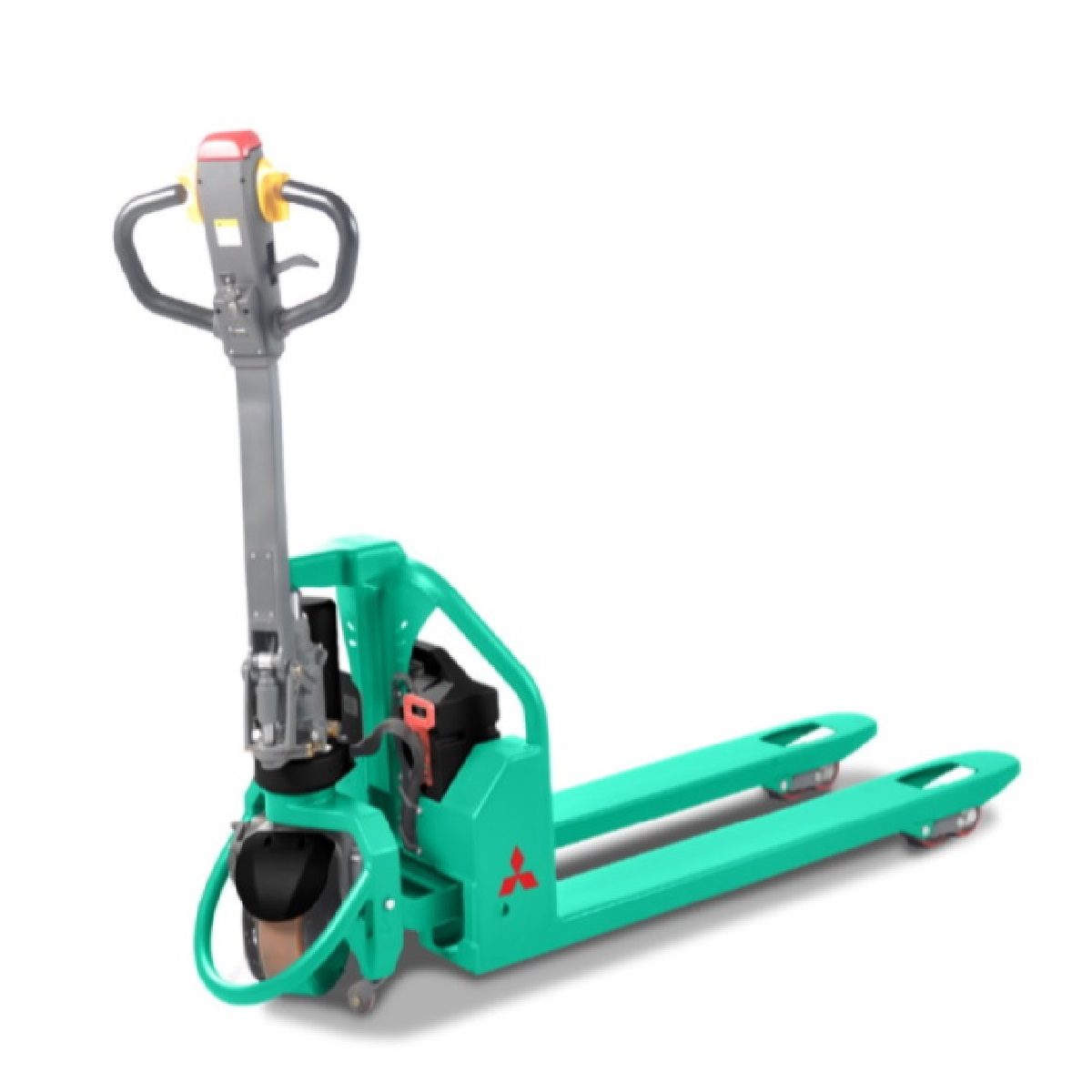

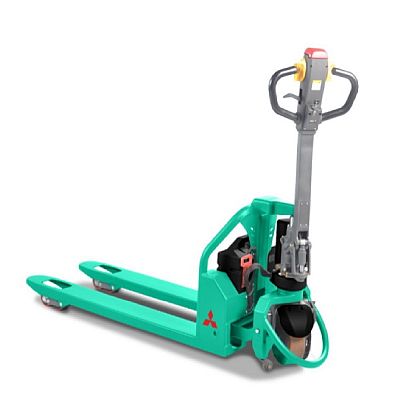

ELECTRIC HAND PALLET TRUCK PBPL15 MPTP

The PBPL is a user-friendly, multi-use solution for nearly any application. With its compact design, low service weight and small turning radius, the PBPL15 MPTP  is ideal for use in confined spaces, including: retail stores, trailers, containers and small warehouses.

Double brake discs are included as standard for enhanced braking performance.

Unlike conventional hand pallet trucks, PBPL15 MPTP features a 48-volt Lithium-Ion power source, whick provides six hours of productie use: making it the perfect choice for short and mid distance runs. The truck is supplied with an external charging dock – allowing you to charge an extra battery in just 3.5 hours, while the truck is still in use.

Forklift data

Load Capacity	1500 kg
Lift Height	190 mm
Tyres, drive side	Polyurethane
Tyres, load side	Polyurethane
Overall Length	1651 mm
Overall Width	550 mm
Truck Weight	145 kg
Fork Dimensions	45 x 160 x 1150 mm
Turning Radius	1452 mm

Za prenos tehničnega lista in kataloga
kliknite na ikoni

• Features
• Inquiry

• Frame and body
  • • High quality, stable construction gives a stable and durable platform.
    • Compact, lightweight, highperforming body design provides exceptional maneuverability in tight areas.
    • Integrated rocker arm is cast in one piece from solid steel to ensure maximum strength and reliability. (1.5 tonne model)
• Drive
  • • Maintenance free brushless (AC) wheel hub motor with no wearable components like carbon brushes or contactors to replace over time offer long-lasting operation and low maintenance.
    • Patented low noise gearless hub motor design allows tight integration into wheel hubs, thus eliminating the need for gears.
• Forks
  • • Tapered fork tips and tandem PU rollers with fork tip rollers for easy pallet entry and exit.
    • Reinforced chassis and forks with tapered ends offers easy pallet entry. (1.5 tonne model)
• Brakes
  • • Double brake discs are included as standard for enhanced braking performance.
    • Regenerative Brake System with electromagnetic (parking) disk brake, improves the braking performance and working life of the electromagnetic brake.
    • Parking brake automatically stops on gradients and ramps.
    • Kinetic energy from the regenerative brake system charges the battery.
• Electrical and control systems
  • • 48V/20Ah high capacity LithiumIon battery lasts longer and is more powerful.
    •  Li-Ion battery with no leaking hazardous battery gases and acids does not require watering and provides maintenance-free operation.
    • External charger makes it possible to charge the battery onboard.
    • External charging dock allows charging an extra battery while using the truck with only 3.5 hours charging time.
    • Battery interchangeability means that batteries can be used across all PBPL models – regardless of capacity.
• Operator environment and controls
  • • Ergonomic spring-loaded steering handle with comfort grip for reduced operator fatigue.
    • Long tiller with large ergonomic handgrip and integrated battery status indicator provide a comfortable hold and strain-free operation.
    • Side castors improve stability.
• Other features
  • • Easy maintenance with no expensive handheld required, only a laptop, software and a cable.
    • Polyurethane wheels and rollers for smooth and quiet running and additional grip.
